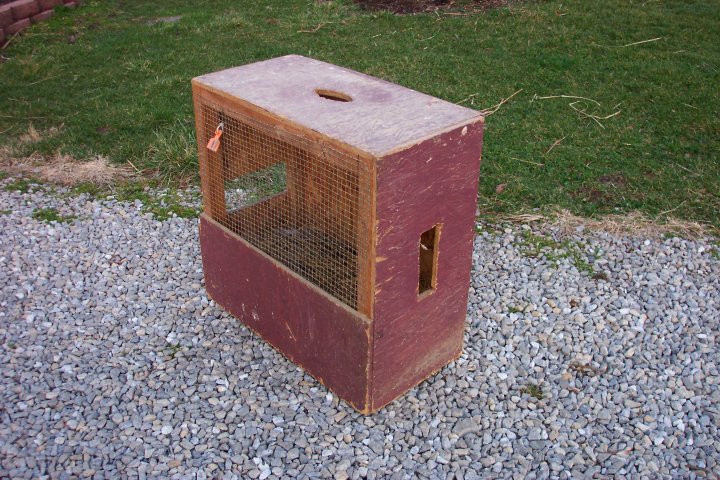

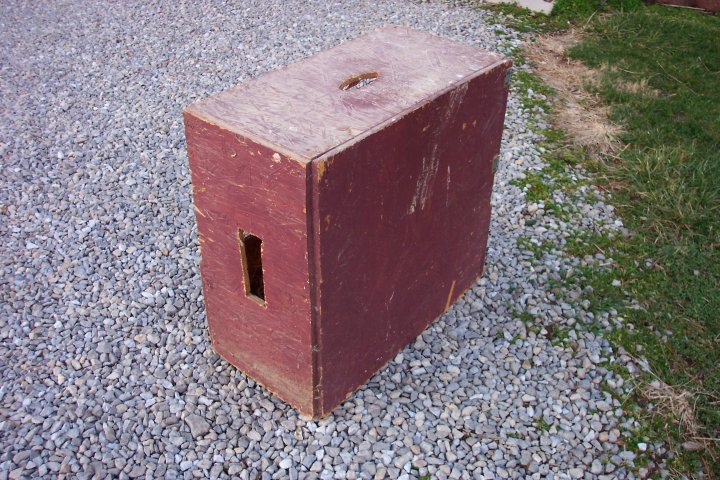

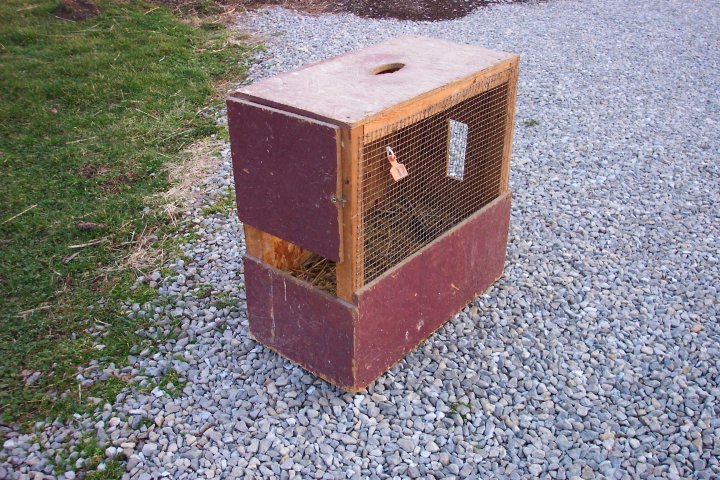

Full Tailed Male Crate

Bill of materials for Peacock Display Crate

4 - 1 ½” x 1 ½” x 23”    pine board (rip a 2” x 4” board in half)

1 - 1 ½” x 1 ½” x 20 7/8” pine board (rip a 2” x 4” board in half)

1 - 2’ x 2’ x ½”  plywood or OSB board for the back of the crate

1 - 1’ x 2’ x ½”  plywood or OSB board for the top of the crate

1 - 1’ x 2’ x ½” plywood or OSB board for the front of the crate

1 - 10” x 24 ½” x ½” plywood or OSB board for the open side of the crate

1 - 9” x 13” x ½” plywood or OSB board for the tail end of the crate

1 - 11 ½” x 11” x ½” plywood or OSB board for the door of the crate

1 - 1’ x 2’ x ½” plywood or OSB board for the bottom of the crate

1 - 15” x 23” wire section (hardware cloth or 1” x 1” welded wire)

2  - 1 ½” hinges

1 pair of hook and eye
